• (2) aux pwr outlets in instrument panel
• (4) air registers w/positive shut-off
• 10-way pwr driver & front passenger seats -inc: pwr recline, pwr lumbar
• 110V/150W inverter aux pwr outlet in rear console
• 3-blink lane change signal
• 4-way adjustable driver/passenger headrests
• Accessory delay
• Color-keyed carpet full-floor covering
• Color-keyed cloth headliner -inc: integrated SYNC microphone

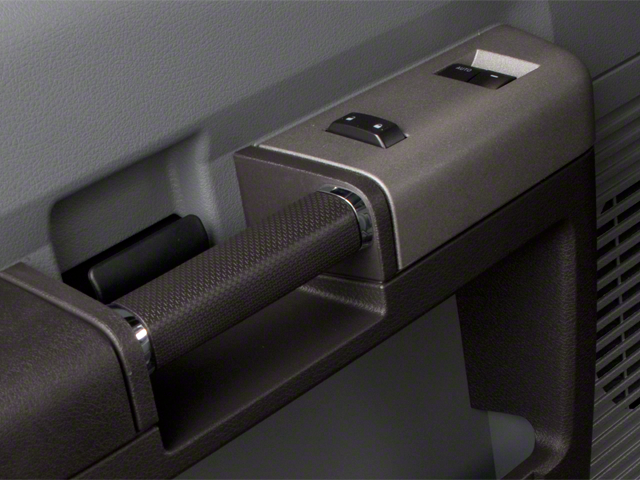

• Color-keyed door trim panel -inc: soft armrest, grab handle, reflector, dark foundry upper applique, upper & lower map pockets

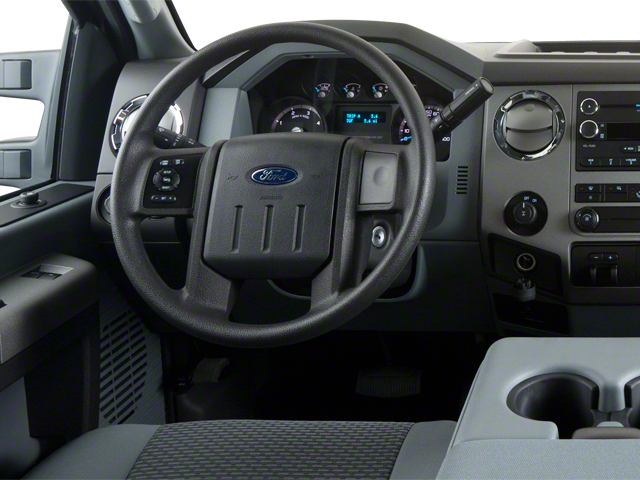

• Color-keyed leather-wrapped steering wheel w/audio & SYNC controls
• Color-keyed scuff plates
• Dash-top tray
• Driver & front passenger grab handles
• Dual color-keyed coat hooks
• Dual color-keyed vinyl sunvisors-inc: driver-side map strap, dual covered lighted mirrors
• Dual zone electronic automatic temperature control (DEATC)
• Electrochromic rearview mirror w/compass
• Front door operated dome lamp w/time delay off & IP switch
• Front map lamps
• Front passenger-side roof ride handle
• Front/rear color-keyed carpeted floor mats

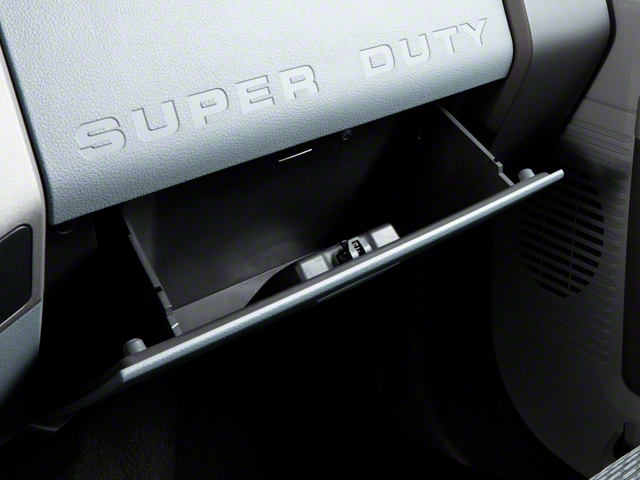

• Glove box
• Instrument panel mounted dual cupholders
• Instrument panel mounted storage
• LCD productivity screen -inc: driver configurable enhanced information 4.2" display, menus for gauge setup, trip computer, fuel economy, towing/off-road applications, (5) button message control on steering wheel, outside temp display
• Map pockets w/integrated "closed containers only" cupholders
• Oil minder system
• Overhead console -inc: storage bins for garage door opener & sunglasses

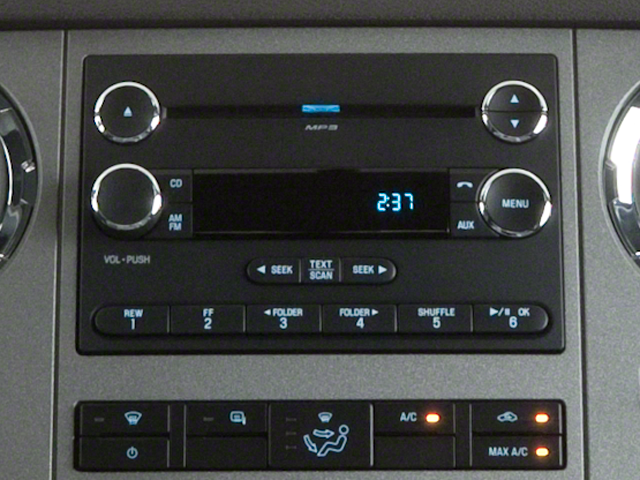

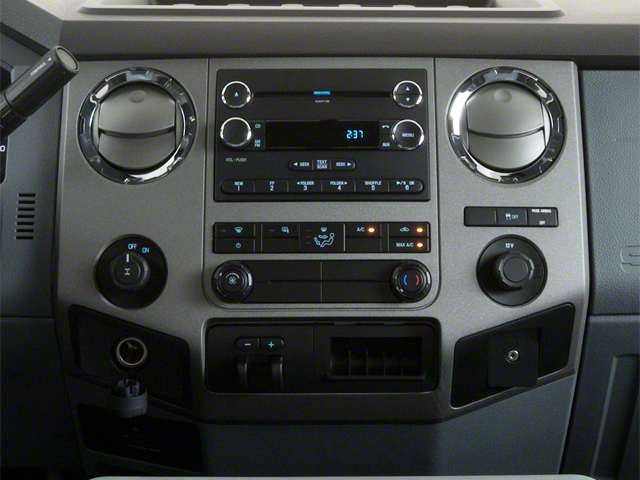

• Premium AM/FM stereo w/CD/MP3 player -inc: clock, (8) speakers, subwoofer, aux audio input jack

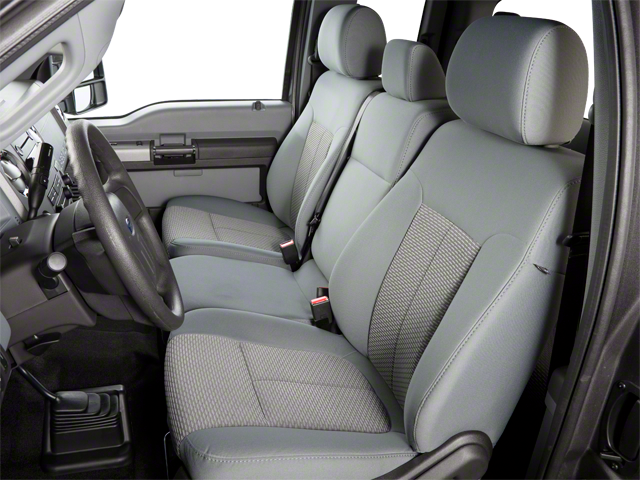

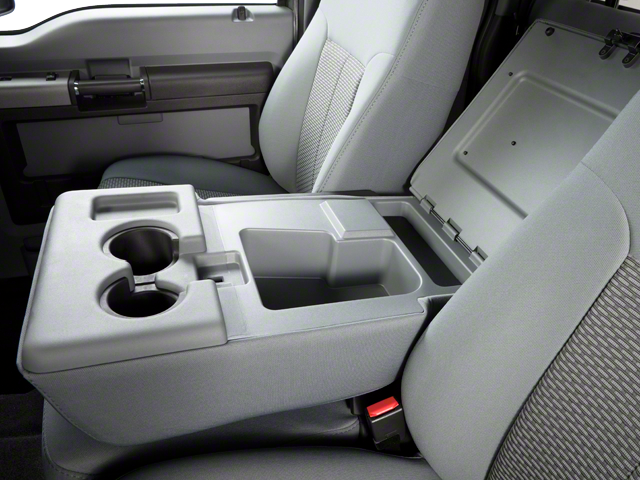

• Premium leather 40/console/40 front seats -inc: monotone leather insert, (2) aux pwr outlets in console
• Pwr adjustable pedals
• Pwr door locks w/backlit switches, autolock & auto unlock, SecuriCode keyless entry keypad
• Pwr windows w/driver one-touch-up/down & backlit switches
• Remote keyless entry & perimeter anti-theft alarm

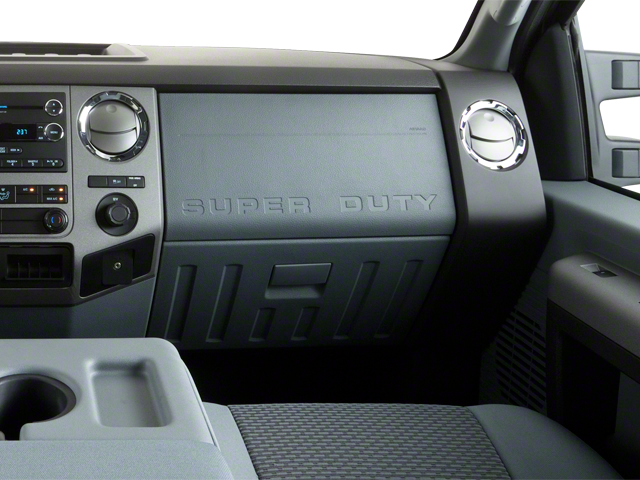

• Secondary glove box
• SecuriLock anti-theft ignition
• SIRIUS satellite radio
• SYNC voice activated communications & entertainment system w/AppLink -inc: Bluetooth® capability, steering wheel audio controls, USB port, audio input jack, 911 Assist, vehicle health reports, turn-by-turn navigation, real-time traffic (AppLink provides control of certain smart phone application using SYNC voice commands. Connect to apps like Pandora & more w/your iPhone, Blackberry or Android platform mobile phones.)
• Tilt/telescoping steering column

• (2) front tow hooks
• 157-amp HD alternator
• 4-ton hydraulic jack
• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• Electric shift-on-the-fly transfer case -inc: manual-locking front hubs, instrument panel auto rotary control
• Front stabilizer bar
• Full-floating rear axle
• HD gas shock absorbers
• Mono-beam front axle w/coil spring suspension
• Pwr steering w/steering damper

• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• Driver & front passenger airbags w/passenger-side deactivation switch
• Driver & front passenger side airbag/curtain
• Hill start assist control
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, BeltMinder w/audio mute
• Pwr 4-wheel disc anti-lock braking system (ABS)
• Reverse vehicle aid sensor
• Safety Canopy system
• SOS post crash alert system
• Trailer sway control

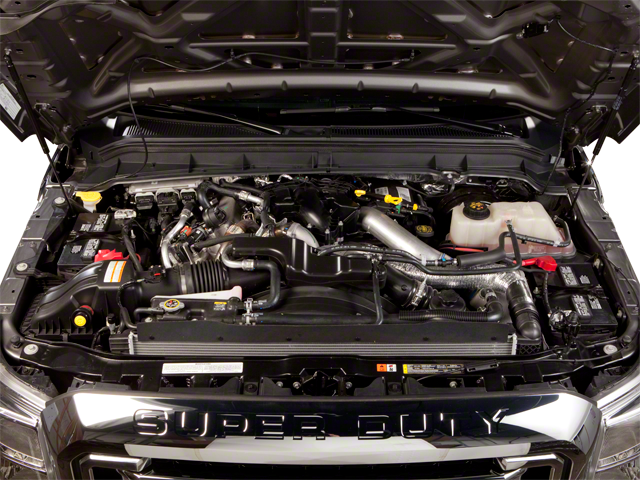

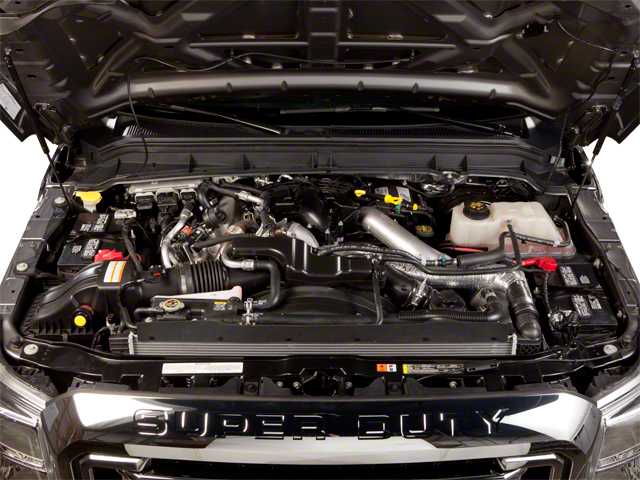

6.7L 32-VALVE PWR STROKE V8 TURBO DIESEL ENGINE

• 750 CCA 78-AH dual batteries
• intelligent oil life minder

• 6.7L 32-VALVE PWR STROKE V8 TURBO DIESEL ENGINE -inc: 750 CCA 78-AH dual batteries intelligent oil life minder
• Security System
• Keyless Entry
• Power Door Locks
• Heated Mirrors
• Power Mirror(s)
• Power Windows
• Integrated Turn Signal Mirrors
• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• Power Steering
• Dual Rear Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Aluminum Wheels
• Conventional Spare Tire
• Running Boards/Side Steps
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Folding Mirrors
• Privacy Glass
• Rear Defrost
• Sliding Rear Window
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Third Passenger Door
• Fourth Passenger Door
• AM/FM Stereo
• CD Player
• Premium Sound System
• MP3 Capability
• Auxiliary Audio Input
• Satellite Radio
• Requires Subscription
• MP3 Capability
• Steering Wheel Audio Controls
• Bluetooth® Connection
• Telematics
• Auxiliary Audio Input
• Navigation from Telematics
• Smart Device Integration
• Requires Subscription
• Climate Control
• Multi-Zone A/C
• A/C
• Leather Seats
• Split Bench Seat
• Power Outlet
• Power Driver Seat
• Power Passenger Seat
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Pass-Through Rear Seat

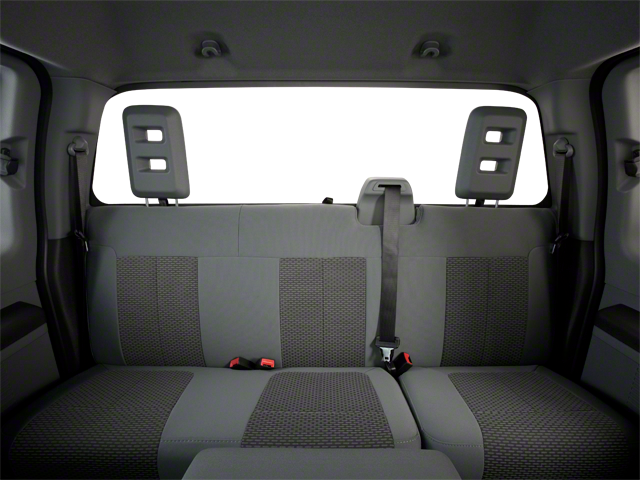

• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Steering Wheel Audio Controls
• Leather Steering Wheel
• Trip Computer
• Power Windows
• Keyless Entry
• Power Door Locks
• Adjustable Pedals
• Security System
• Keyless Entry
• Power Door Locks
• Immobilizer
• Cruise Control
• Power Outlet
• Power Outlet
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• ABS
• 4-Wheel Disc Brakes
• Traction Control
• Front Head Air Bag
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Front Head Air Bag
• Rear Parking Aid
• Driver Restriction Features

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 200
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: - TBD -
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 38.9
• Total Cooling System Capacity (qts): 21.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 9000
• Curb Weight - Front (lbs): 4586
• Curb Weight - Front (lbs): 3985
• Curb Weight - Rear (lbs): 3369
• Curb Weight - Rear (lbs): 3237
• Gross Vehicle Weight Rating Cap (lbs): 13300
• Gross Combined Wt Rating (lbs): 30000
• Gross Combined Wt Rating (lbs): 19500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 15000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2250
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1815
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 21700
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5425
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3000
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Rear (lbs): 9000
• Axle Type - Front: Dana Super 60 Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 9500
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 0.94
• Stabilizer Bar Diameter - Rear (in): 0.87
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 0.6
• Rear Brake Rotor Diam x Thickness (in): 13.4 x 0.3
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: TBK
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): 3195
• Revolutions/Mile @ 45 mph - Front: 660
• Revolutions/Mile @ 45 mph - Rear: 660
• Revolutions/Mile @ 45 mph - Spare: 660

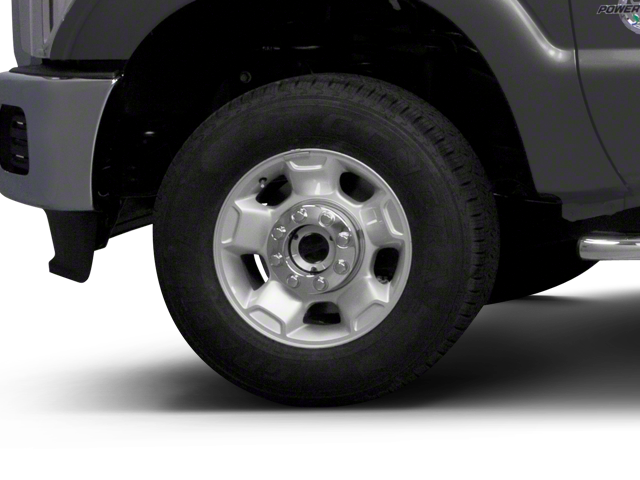

• Wheels

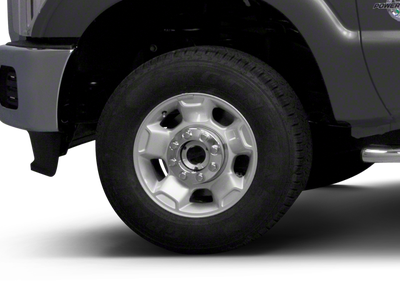

• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): 17 x 6.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.3
• Turning Diameter - Wall to Wall (ft): 54.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26.0
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 158.0
• Length, Overall w/o rear bumper (in): 248.6
• Width, Max w/o mirrors (in): 96.0
• Height, Overall (in): 79.7
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 139.8
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 35.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.0
• Ground Clearance, Rear (in): 8.0

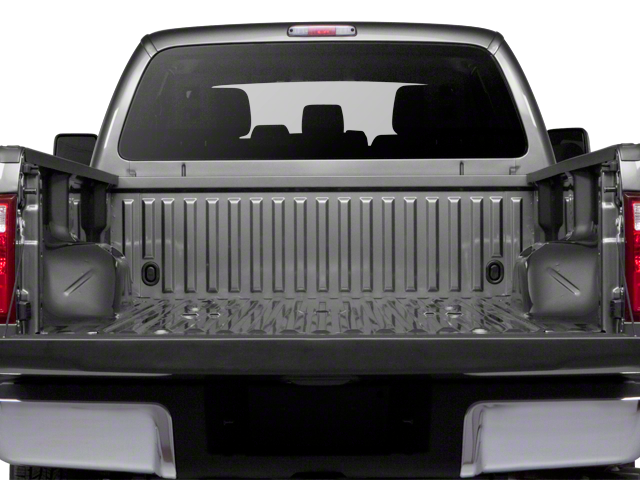

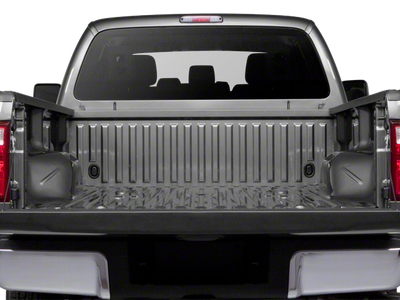

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.0
• Cargo Box Width @ Top, Rear (in): 60.6
• Cargo Box Width @ Floor (in): 69.3
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 77.3
• Ext'd Cab Cargo Volume (ft³): 39.5
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 38.1
• Second Leg Room (in): 31.6
• Second Shoulder Room (in): 68.1
• Second Hip Room (in): 67.3
• Summary

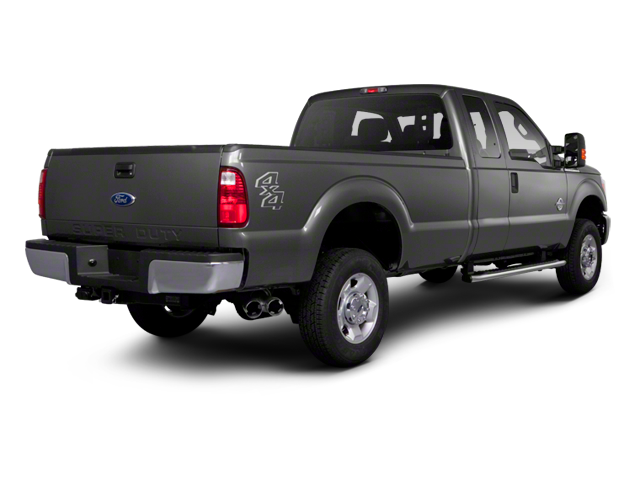

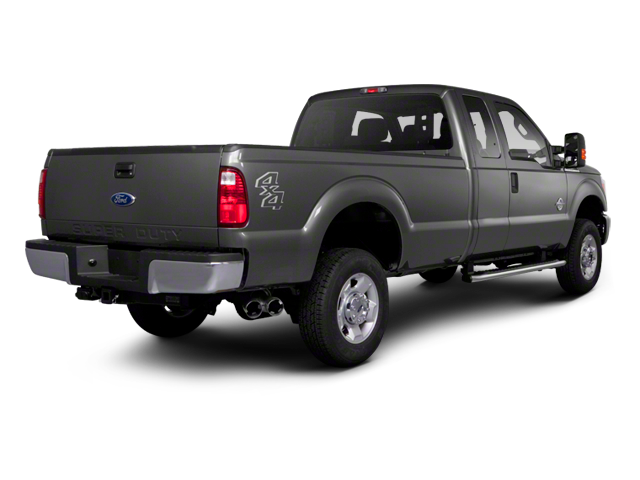

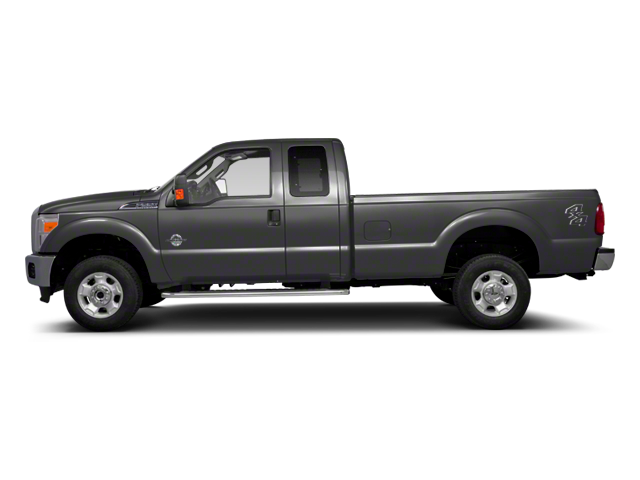

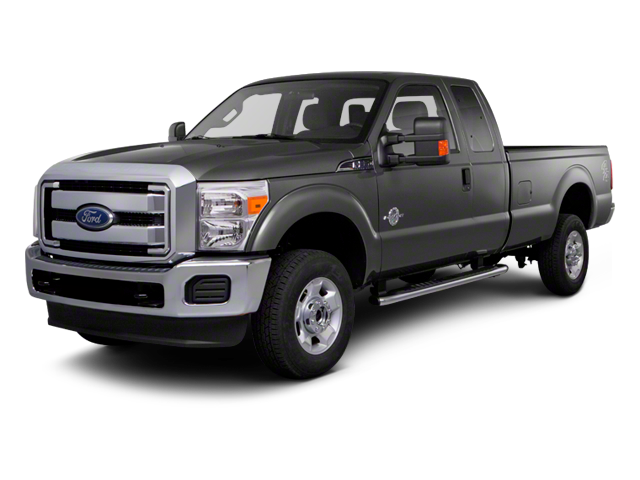

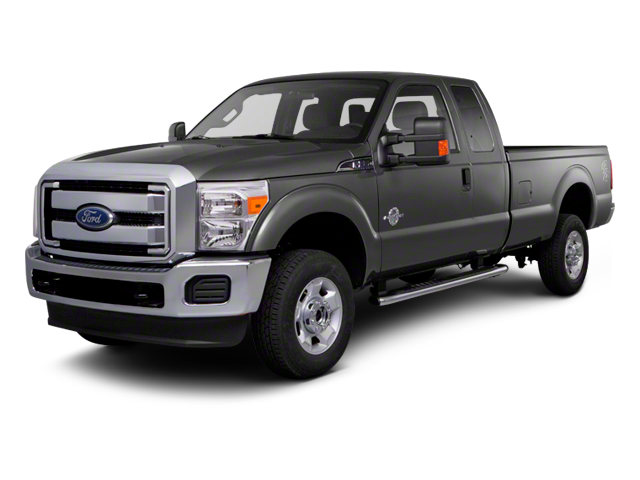

• Vehicle Name: Ford Super Duty F-350 DRW
• Body Style: Extended Cab Pickup
• Body Code: 158" WB
