• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Audio system feature, Bose premium speaker system with sub-woofer in center console
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Coat hooks, rear driver and passenger side
• Cruise control, electronic with set and resume speed, located on steering wheel
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
• Door locks, power includes Remote Keyless Entry
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview auto-dimming
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Seat adjuster, driver 10-way power
• Seat adjuster, front passenger 10-way power

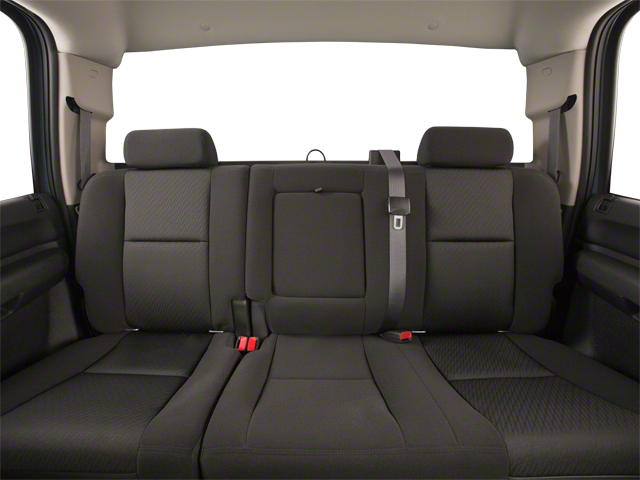

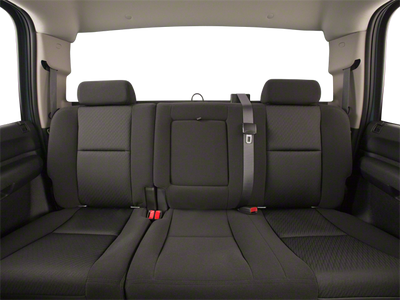

• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)
• Seats, front bucket includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control, heated seat cushions and seatbacks, 2-position driver memory, adjustable outboard head restraints, floor console and storage pockets
• SiriusXM Satellite Radio (subscription required)

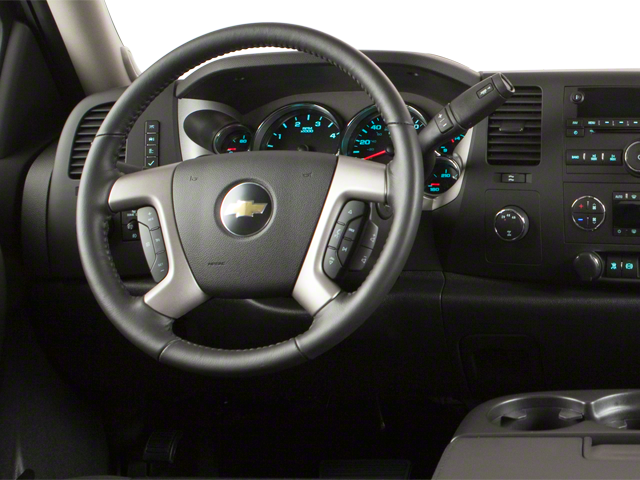

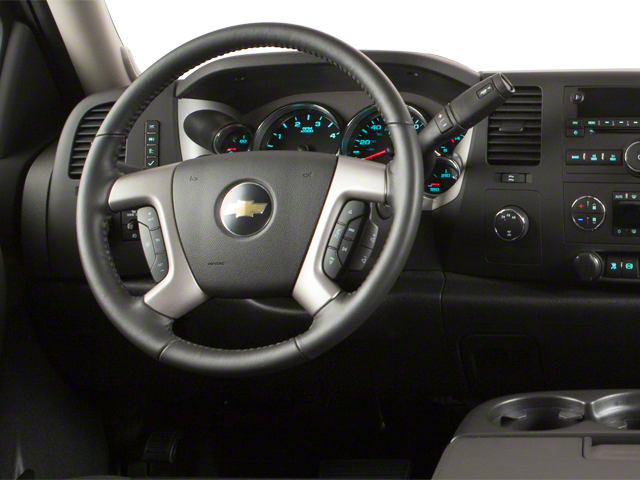

• Steering wheel controls, mounted audio controls
• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

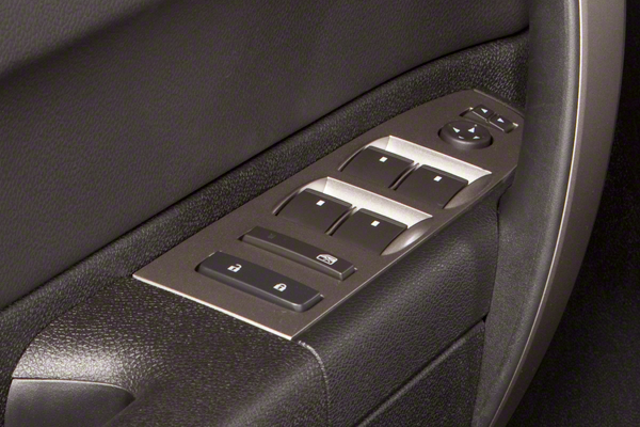

• Windows, power with driver Express-Down (Includes front passenger Express-down.)

• Air cleaner, high-capacity
• Alternator, 125 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Differential, heavy-duty automatic locking rear
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Steering, power, recirculating ball
• Trailer brake controller, integrated
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)

• Automatic Crash Response
• Daytime Running Lamps with automatic exterior lamp control
• Door locks, rear child security (Crew Cab models only.)
• OnStar Equipped (subscription required)
• OnStar Turn-by-Turn Navigation
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Stolen Vehicle Assistance
• Tire Pressure Monitor System (does not apply to spare tire)

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION, BLACK

• includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)

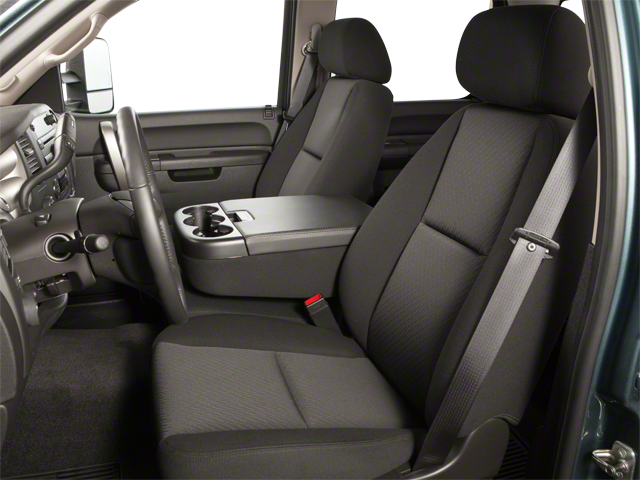

SEATS, FRONT BUCKET

• includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control
• heated seat cushions and seatbacks
• 2-position driver memory
• adjustable outboard head restraints

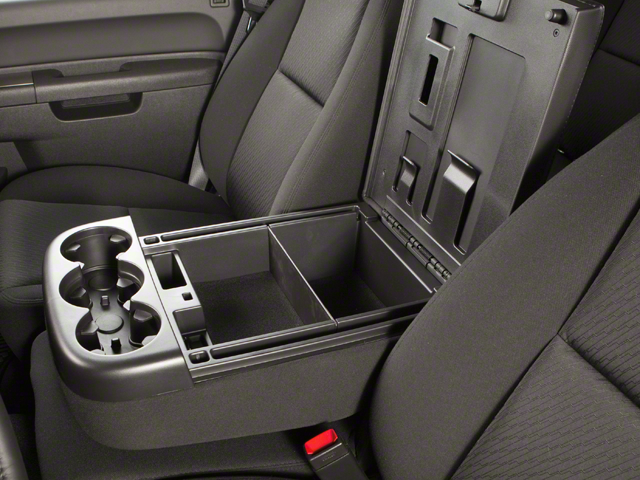

• floor console and storage pockets (STD)

REAR PARKING ASSIST, ULTRASONIC

• with audible warning

SUSPENSION PACKAGE, HANDLING/TRAILERING, HEAVY-DUTY

• includes 35mm twin tube shock absorbers and 36mm front stabilizer bar (STD)

LTZ PLUS PACKAGE

• includes (UG1) Universal Home Remote
• (A60) locking tailgate
• (PPA) EZ-Lift tailgate
• (JF4) power-adjustable pedals
• (UD7) Rear Parking Assist and (S41) Rear wheelhouse liner
• LPO

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER

• includes additional 7-way wiring harness routed to front of pickup box

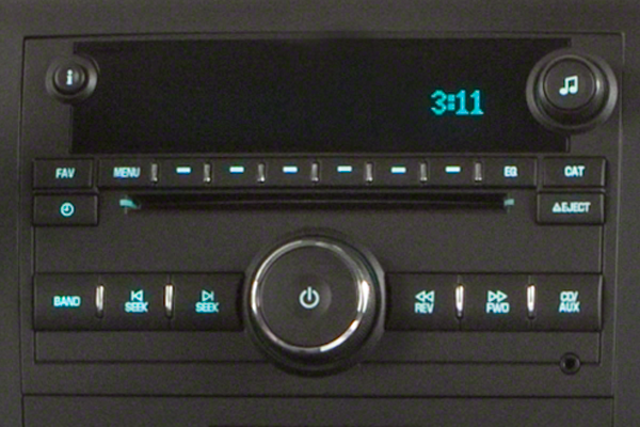

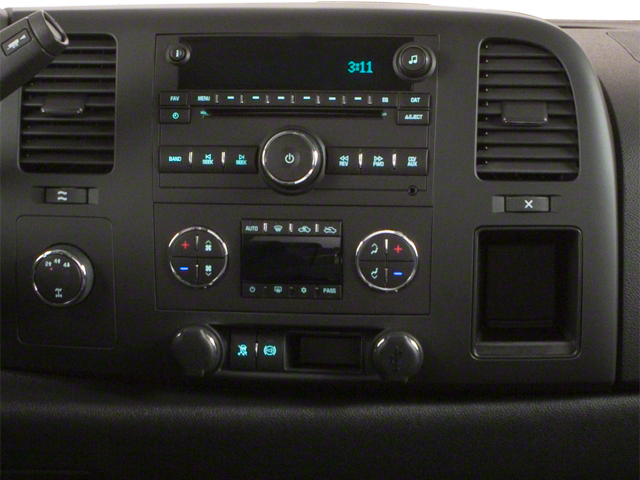

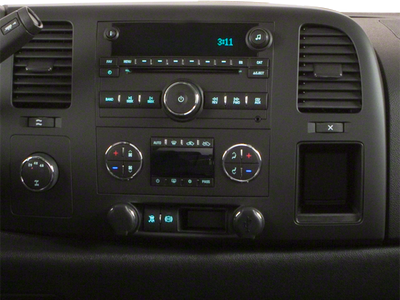

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER AND MP3 PLAYBACK

• USB port
• auxiliary input jack
• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• automatic volume
• TheftLock and 36 cross-band presets (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

WHEELS, 18" (45.7 CM) FORGED POLISHED ALUMINUM

• (STD)

LTZ PREFERRED EQUIPMENT GROUP

• includes standard equipment

SKID PLATE PACKAGE, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

MIRROR, INSIDE REARVIEW AUTO-DIMMING

• with rear camera display

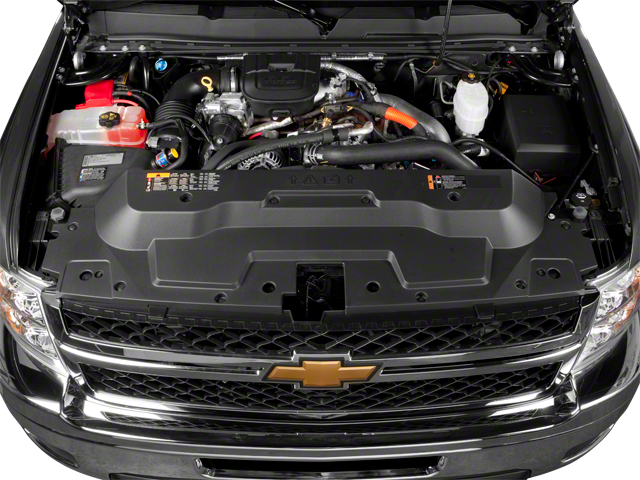

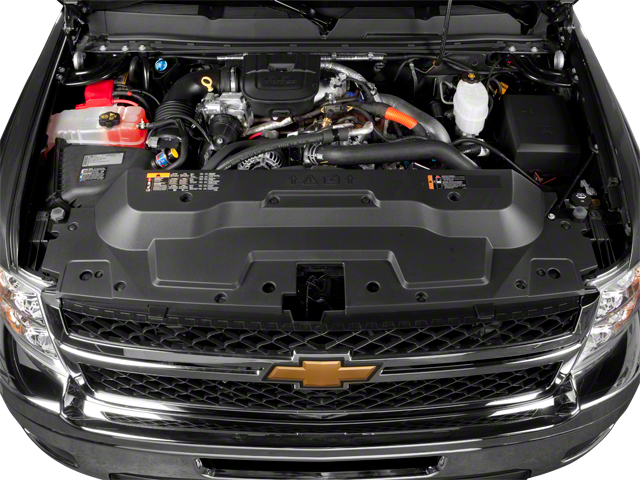

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

SUNROOF, POWER

• retracts into roof
• includes (UG1) Universal Home Remote

• LICENSE PLATE FRONT MOUNTING PACKAGE
• GVWR 9900 LBS. (4490 KG)
• EBONY LEATHER-APPOINTED FRONT SEAT TRIM
• UNIVERSAL HOME REMOTE
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION BLACK includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)
• ENGINE BLOCK HEATER
• SEATS FRONT BUCKET includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control heated seat cushions and seatbacks 2-position driver memory adjustable outboard head restraints floor console and storage pockets (STD)
• TIRE SPARE LT265/70R18E ALL-SEASON BLACKWALL
• REAR AXLE 3.73 RATIO
• REAR PARKING ASSIST ULTRASONIC with audible warning
• TAILGATE EZ-LIFT
• VICTORY RED
• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY-DUTY includes 35mm twin tube shock absorbers and 36mm front stabilizer bar (STD)
• LTZ PLUS PACKAGE includes (UG1) Universal Home Remote (A60) locking tailgate (PPA) EZ-Lift tailgate (JF4) power-adjustable pedals (UD7) Rear Parking Assist and (S41) Rear wheelhouse liner LPO
• TRAILERING WIRING PROVISIONS FOR CAMPER FIFTH WHEEL AND GOOSENECK TRAILER includes additional 7-way wiring harness routed to front of pickup box
• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER AND MP3 PLAYBACK USB port auxiliary input jack seek-and-scan digital clock auto-tone control Radio Data System (RDS) automatic volume TheftLock and 36 cross-band presets (STD)
• PEDALS POWER-ADJUSTABLE FOR ACCELERATOR AND BRAKE
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• TIRES LT265/70R18E ALL-TERRAIN BLACKWALL
• LPO REAR WHEELHOUSE LINER
• WHEELS 18" (45.7 CM) FORGED POLISHED ALUMINUM (STD)
• PAINT SOLID
• TAILGATE LOCKING
• REAR VISION CAMERA
• LTZ PREFERRED EQUIPMENT GROUP includes standard equipment
• SKID PLATE PACKAGE FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• MIRROR INSIDE REARVIEW AUTO-DIMMING with rear camera display
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)
• SUNROOF POWER retracts into roof includes (UG1) Universal Home Remote
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Folding Mirrors
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Satellite Radio
• Requires Subscription
• Premium Sound System
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Leather Seats
• Power Driver Seat
• Power Passenger Seat
• Rear Bench Seat
• Power Outlet
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Power Windows
• Keyless Entry
• Power Door Locks
• Cruise Control
• Security System
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Power Outlet
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Smart Device Integration
• Requires Subscription
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Requires Subscription
• Child Safety Locks
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3816
• Curb Weight - Rear (lbs): 2765
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1395
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9300
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2325
• Maximum Trailering Capacity (lbs): 14700
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QGM
• Front Tire Order Code: QWF
• Rear Tire Order Code: QGM
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): 2860
• Rear Tire Capacity (lbs): 3185
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x - TBD -
• Rear Wheel Size (in): 18 x - TBD -
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 54.8
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.70
• Length, Overall w/o rear bumper (in): 259.10
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 78.10
• Overhang, Front (in): 38.80
• Overhang, Rear w/o bumper (in): 52.60
• Front Bumper to Back of Cab (in): 150.90
• Cab to Axle (in): 55.60
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.80
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.80
• Ground Clearance, Rear (in): 8.20
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.80
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.50
• Cargo Box Width @ Wheelhousings (in): 50.60
• Cargo Box (Area) Height (in): 21.00
• Tailgate Width (in): 61.60
• Cargo Volume (ft³): 75.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.30
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 60.30
• Second Head Room (in): 40.60
• Second Leg Room (in): 39.00
• Second Shoulder Room (in): 65.20
• Second Hip Room (in): 65.50
• Summary
• Vehicle Name: Chevrolet Silverado 2500HD

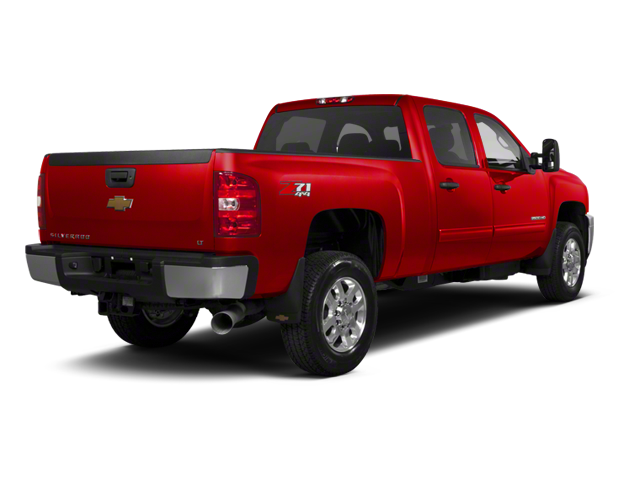

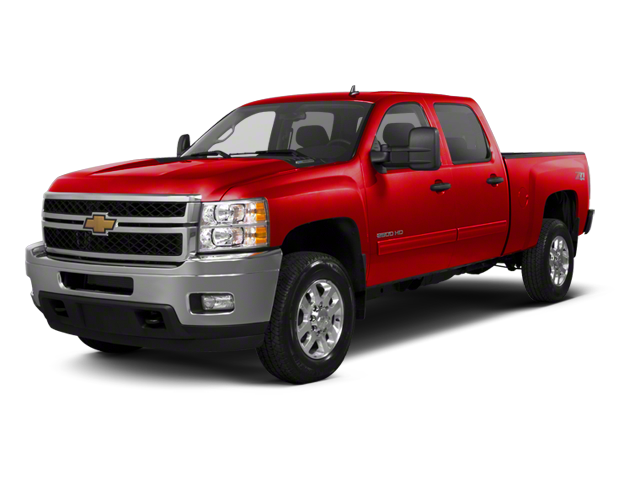

• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
